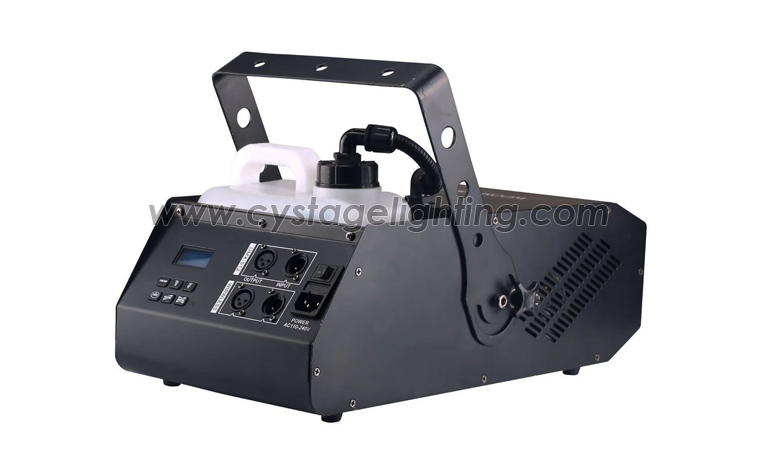

WS-1500Y 1500W Smoke Machine

 Features:

• Stable performance and fog output;

• Equipped with electronic temperature control system, high-accuracy temperature control PCB and new professional atomizer;

• Easy set timing and quantitative work;

• 3-pin DMX512 input/output socket;

• No-fluid protection for safety use;

• Built-in LCD control and wireless control. Remote controller is convenient for group use, several units used together can be selectable control;

• Please use WOOSHOW professional smoke oil ZY-03.

Specifications:

AC POWER

• Input Voltage & Rate: 220-240 V, 50/60 Hz

• Current Limiter Type: Breaker

• Current Limiter Specifications: 10 A, 250 V

• Total Power Consumption: 1,350 W

• Operating Current: 5.9 A

• Power Input Connector: Hard-wired

HEATING

• Heat Up Time: Appr. 5.0 min

• Heater Type: Aluminum Heater Block

CAPACITY

• Fluid Tank Capacity : 3L

OUTPUT

• Adjustable Volume: √

• Volume Adjustment Level/Range: 1-100%

• Max Output Volume: Appr. 25,000 cuft/min

• Max Output Distance : Appr. 6 m

• Fluid Consumption @ full volume : Appr. 149.3 mL/min

• Maximum Continuous Duration @ full volume: Appr. 15 sec

• Continuous Output : ×

• Max Continuous Output Level: 100%

• Fully-loaded Cumulative Output Duration @ full volume: Appr. 20 min

FEATURES

• Physical Thermostat: √

• Electronic Thermo-Control: √

• No-Fluid Protection: √

• Instant-Stop: ×

CONTROL

• On-device Manual Control : LCD control board

• Wireless Control: W-2 / RF 315MHz / External receiver

• Control Protocol: DMX-512

• DMX Channel Range: 1

• Data Connectors: 3-pin XLR

ACCESSORY

• Power Cord: √

• Wireless Controller Model: W-2 / RF 315MHz / Transmitter & Receiver

CONSUMABLE

• Consumable: professional smoke oil ZY-03

WEIGHT & DIMENSIONS

• Net Weight: 8 kg

• Gross Weight: 10.5 kg

• Machine Dimensions: 46x23x15cm

• Packing Dimensions: 55x29x26.5cm
