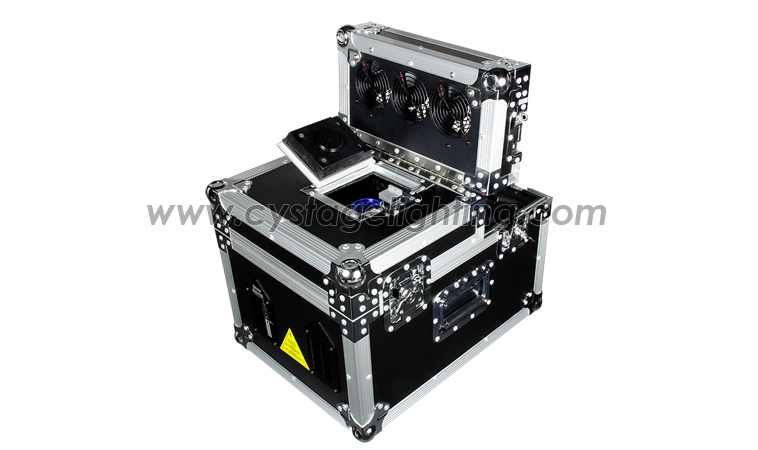

WS-600 600W Haze Machine

 WS-600 is a professional oil-based haze machine. Using high-pressure atomization technology, no heating system, to produce haze without waiting for pre-heat up. Selected best quality components ensure the professional haze effect and durability. Updated nozzle provides better haze effect. Extremely low fluid consumption rate and long-time continuous output, suit for all kinds of indoor and outdoor performances.

Feature:

• User-friendly LCD display and operation;

• Angle and speed adjustable fan using DC 12V to ensure operation safety;

• Super quiet, Low noise and durable;

• Dry and fine haze, diffuse fast;

• No need heating, plug and play;

• Built-in LCD control and DMX control;

• Please use WOOSHOW professional haze fluid WY-01.

Specification:

AC POWER

• Input Voltage & Rate: 220-240 V, 100-120V, 50/60 Hz

• Current Limiter Type: Fuse (F)

• Current Limiter Specifications: 5 A, 250 V

• Total Power Consumption: 600 W

• Operating Current: 2.2 A

• Power Input Connector: IEC

HEATING

• Heat Up Time: 0 min

CAPACITY

• Fluid Tank Capacity : 2.5L

OUTPUT

• Max Output Volume: 3500 cubic feet/min

• Fluid Consumption @ full volume : Appr. 0.7 mL/min

• Maximum Continuous Duration @ full volume: Unlimited

• Continuous Output : √

• Max Continuous Output Level: 100%

• Fully-loaded Cumulative Output Duration @ full volume: Appr. 3,750 min

FEATURES

• Physical Thermostat: ×

• Electronic Thermo-Control: √

• Adjustable Output : √

• Adjustable Fan Speed: √

• No-Fluid Protection: √

CONTROL

• On-device Manual Control : LCD control board

• Wireless Control: ×

• Wired Control: ×

• Control Protocol: DMX-512

• DMX Channel Range: 2( CH1: Smoke output control; CH2: Fan speed control)

• Data Connectors: 3-pin XLR

ACCESSORY

• Flight Case: √

• Power Cord: √

• Wireless Controller Model: ×

• Wired Controller Model: ×

CONSUMABLE

• Consumable: WY-01 Oil Base Haze Fluid

WEIGHT & DIMENSIONS

• Net Weight: 30 kg

• Gross Weight: 36kg

• Machine Dimensions: 49.3x37x40cm

• Packing Dimensions: 51x39x40cm
