PIXEL TILE 1.0 4x20 Led Pixel-Mapping Bar

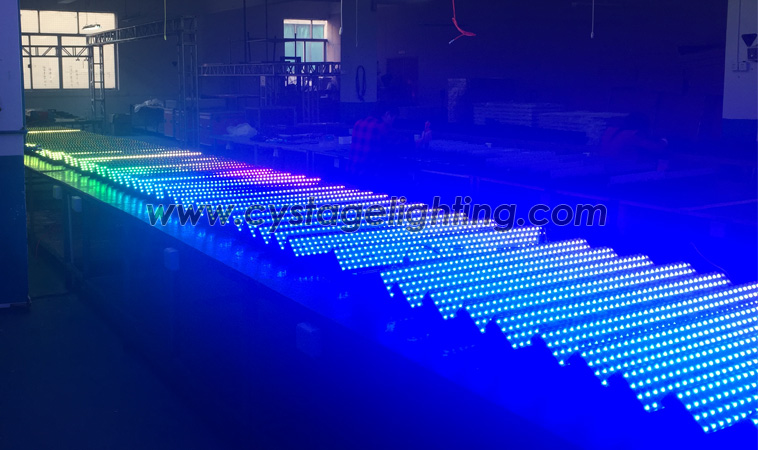

4x20 Led Pixel-Mapping Bar is a linear LED video fixture for the rental market with 12.5 mm pixel pitch and an extensive range of optical accessories for a wide variety of looks (black and white milk, transparent on demand). Each bar features 80 LED RGB LEDs with individual pixel control, 0.5 meter long, 120° viewing angle. The mechanics of Led Pixel-Mapping mini bar have been studied to grant a great mounting flexibility through a sliding hardwares on the back for truss application and on the side for multiple vertical linking. The external control unit-Led Pixel-MAPPING  drive is compatible with Art-Net and Kling-Net &DMX &RDM protocolS, and runs both signal and power over a RJ45 cables that provides greater stability and connection in daisy chain (up to 16pcs Led Pixel-Mapping bar).

Light Source and Optics

• 80 SMD5050 RGB/FC high-efficiency LEDs

• Luminous flux: black cover = 206,95 NIT, milky cover = 827,80 NIT, transparent cover =1174 NIT

• Pixel2pixel control

• Viewing angle: 120°

• Pixel pitch: 25 mm

• Color synthesis: RGB/FullColor mixing (>16 million colors)

• LEDs average life span: >50'000h

Electronics and Features

• Art-Net and Kling-Net control protocol supported

• Power and signal ONLY through Led dream color strip drive (optional)

• Art-Net and Kling-Net &DMX control protocol supported

• Channels Art-Net: 120

• Channels DMX:8

Structure and Power supply

• Sturdy aluminum profile

• Internal Protection: IP20

• Sliding bracket for truss rigging and vertical hardware for connection of more units

• Black matte filter (mounted), white milk filter (included), transparent filter (optional)

• Power unit: DC48V

• IN/OUT power wiring and signal through connections RJ45(Max 16 units on a Led Dream color strip driver?)

• Power consumption: 15/25W

• Near-effortless pixel mapping and video one-meter strips, that combine to make a system that sets up in minutes with minimal technical know-how?

• Easily control each using Art-Net (3.0 compliant) or Arkaos Kling-Net

• Quickly configure these slim, one-meter strips and link up to four inline with RJ45 cables or create vertical effects with new hardware linking system?

• Achieve wide viewing angles and excellent color rendering with tri-colored SMD 5050 LEDs covered by a smooth diffuser plate?

• Easily manage configuration and software updates with the network-based remote web server

• Works with ArKaos MediaMaster Express for a plug-n-play system which requires little training to operate

• Weight: 2.0 kg

• Dimensions (WxHxD): 500x100x37 mm

NOTE: Led Pixel-Mapping Drive is required for operation
